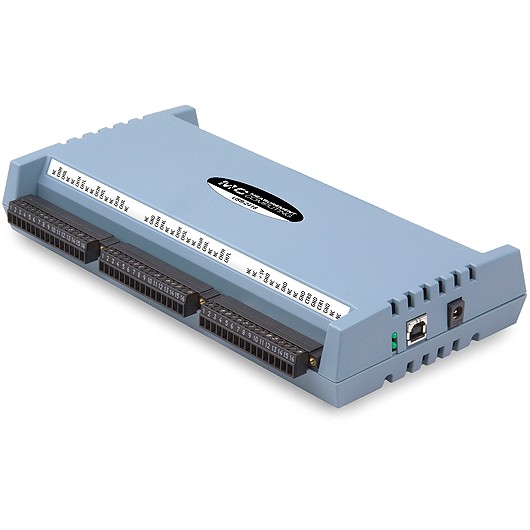

USB-2416 Series
Expandable Thermocouple and Voltage USB Devices
USB-2416 Series
$2,280.00 – $2,690.00
KEY HIGHLIGHTS
The USB-2416 Series of USB data acquisition (DAQ) devices are ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions. Up to four analog outputs are available. Analog input channels are expandable up to 64 SE/32 DIFF using AI-EXP32.
Analog Input | |||
Channels | Resolution | Max Sample Rate | Sampling |
32 SE/16 DIFF expandable to 64 SE/32 DIFF | 24-bit | 1 kS/s | Multiplexed |
Ranges | Isolation | ||
±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV | 500 VDC ch-host | ||
Sensor | |||
Thermocouple | RTD | Thermistor | Voltage |
Yes | — | — | Yes |
Analog Output | |||
Channels | Resolution | Speed | |
Up to 4 | 16-bit | Up to 1 kS/s | |
Digital I/O | |||
Channels | Counter/Timers | Encoder | |
8 | 2/— | — |
Software | Power | |
OS Support | Drivers | Power |
Windows® and Linux® | Universal Library™ SW Suite | External |
SKU | Price | Buy | Image | Description |
---|---|---|---|---|
USB-2416 | $2,280.00 | DAQ device with 32 SE/16 DIFF analog inputs (thermocouple or voltage, expandable to 64 SE/32 DIFF), 24-bit resolution, 1 kS/s sample rate, 8 digital I/O (expandable to 24), and 2 counter inputs. | ||
USB-2416-4AO | $2,690.00 | DAQ device with 32 SE/16 DIFF analog inputs (thermocouple or voltage, expandable to 64 SE/32 DIFF), 24-bit resolution, 1 kS/s sample rate, 4 analog outputs, 8 digital I/O (expandable to 24), and 2 counter inputs. |
Additional information
Series | USB-2416, USB-2416-4AO |
---|
×
