MCC 152

Voltage Output and DIO DAQ HAT for Raspberry Pi®

MCC 152


Voltage output and DIO HAT for Raspberry Pi with 2 analog output channels and 8 digital I/O.

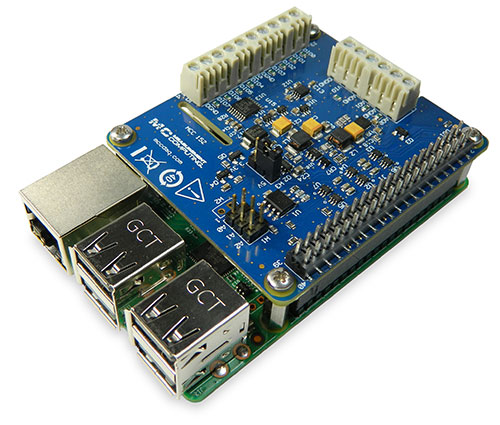

The MCC 152 Voltage Output and DIO HAT provides two channels of analog voltage output and eight digital I/O for Raspberry Pi based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC DAQ HAT devices can be stacked onto one Raspberry Pi.

All MCC DAQ HATs provide easy-to-use C/C++® and Python™ open-source libraries and examples allowing you to take reliable, quality measurements quickly.

NOTE: Raspberry Pi is not included with the MCC 152.

Channels Resolution Speed
2 12-bit 5 kS/s — SW paced
Digital I/O
Channels Counter/Timers Encoder
Software Power
OS Support Drivers Power
Linux®, Raspbian® DAQ HAT Library™ 3.3 V provided by Rpi
